OTA State Machine¶

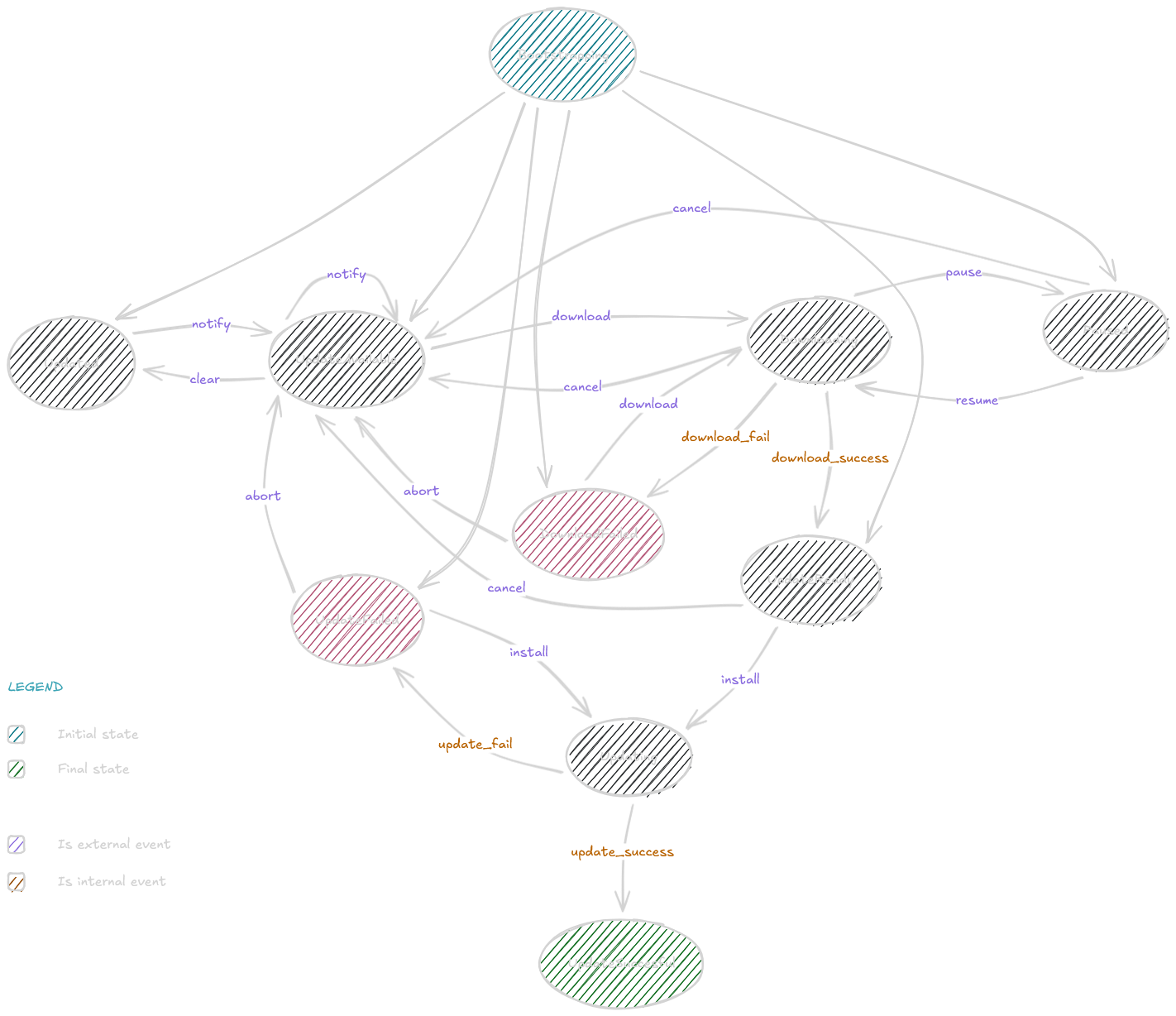

State Diagram¶
States¶
| State | Value | Description |
|---|---|---|
bootstrapping |
bootstrapping |
Initial state on startup. Resolves to the correct runtime state by reading the checkpoint file. |
updated |
updated |
System is running the latest firmware. Normal idle state. |
update_available |
update_available |
An update has been signalled via NotifyOTAUpdate. |
downloading |
downloading |
The update artifact is being downloaded. |
paused |
paused |
Download is paused. Resumed via ResumeOTADownload. |
download_failed |
download_failed |
Download encountered an error. |
update_ready |
update_ready |
Artifact downloaded and ready for installation. |
updating |
updating |
The update is being installed. |
update_failed |
update_failed |
Installation failed. |
update_successful |
update_successful |
Update installed successfully. Terminal state. |
Transitions¶
| Trigger | From | To |
|---|---|---|
notify |
updated, update_available |
update_available |
download |
update_available, download_failed |
downloading |
pause |
downloading |
paused |
resume |
paused |
downloading |
download_fail |
downloading |
download_failed |
download_success |
downloading |
update_ready |
install |
update_ready, update_failed |
updating |
update_fail |
updating |
update_failed |
update_success |
updating |
update_successful |
abort |
download_failed, update_failed |
update_available |
clear |
update_available |
updated |
cancel |
downloading, paused, update_ready |
update_available |
reset |
Any (except update_successful) |
bootstrapping |
Bootstrap Transitions (startup recovery)¶
| Trigger | From | To |
|---|---|---|
detect_up_to_date |
bootstrapping |
updated |
detect_update_available |
bootstrapping |
update_available |
detect_download_paused |
bootstrapping |
paused |
detect_update_ready |
bootstrapping |
update_ready |
detect_download_error |
bootstrapping |
download_failed |
detect_update_error |
bootstrapping |
update_failed |
Error Recovery Paths¶
| Failure | Correct recovery command |
|---|---|
| Download failed | AbortOTAUpdate → returns to update_available |
| Installation failed | AbortOTAUpdate → returns to update_available |
| Cancel in-progress download | CancelOTAUpdate → returns to update_available |
| Full reset | ResetOTAState → returns to bootstrapping → resolves to updated |
